Point Table Creation

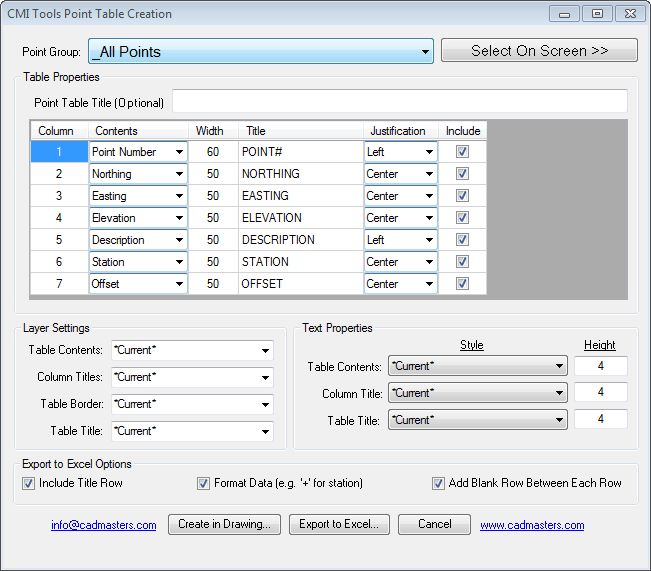

Create a table within your AutoCAD drawing that shows point information – northing, easting, elevation, description. You can even include stations and offsets to a reference alignment:

point table create 1

point table create 2
