DVIEW Twist

DVIEW TWIST Commands

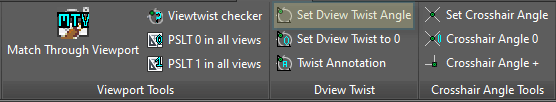

Command: SET DVIEW TWIST ANGLE

The “Set Dview Twist Angle” button allows the user to click 2 points in the drawing area by choosing on screen or typing coordinates.  It will take the line between two points and align that with horizontal.

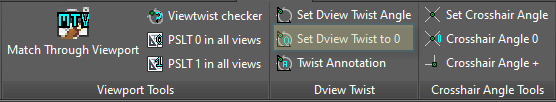

Command: SET DVIEW TWIST TO ZERO

The “Set Dview Twist to 0” button will restore the twist angle to the x-axis of the current coordinate system.

Command: TWIST ANNOTATION

The “Twist Annotation” button will track down all text in the drawing and rotate it to align with the current twist angle of the view.
